Short Description:

OKES’ honeycomb panel lamp belongs to the new ultra-thin series, which uses a LED chip with an anti-glare hole in the structure to precisely control the distribution of light to achieve sufficient light and anti-glare effect. The back adopts a freely moving buckle, and the position of the buckle can be adjusted reasonably according to the size of the hole, so that large size lamps can be installed even in small holes. The radiator is made of integrated metal material, which has a large heat dissipation area, better heat dissipation effect, and is faster, effectively protecting the LED chip and increasing the service life.



 Product feature :

*  Free movement buckle, not limited by the position of the hole, strong installation flexibility.

*  Ultra-thin honeycomb panel has a larger range of luminous area, effective anti-glare, fashion and beauty.

*  Using optical high transparency PMMA lampshade, exclusive optical material, strong light transmittance, bright and uniform light color.

*  The use of high-quality high-brightness LED chip, high brightness, high color rendering index does not hurt the eyes.


Product Detail

6
4

Application:

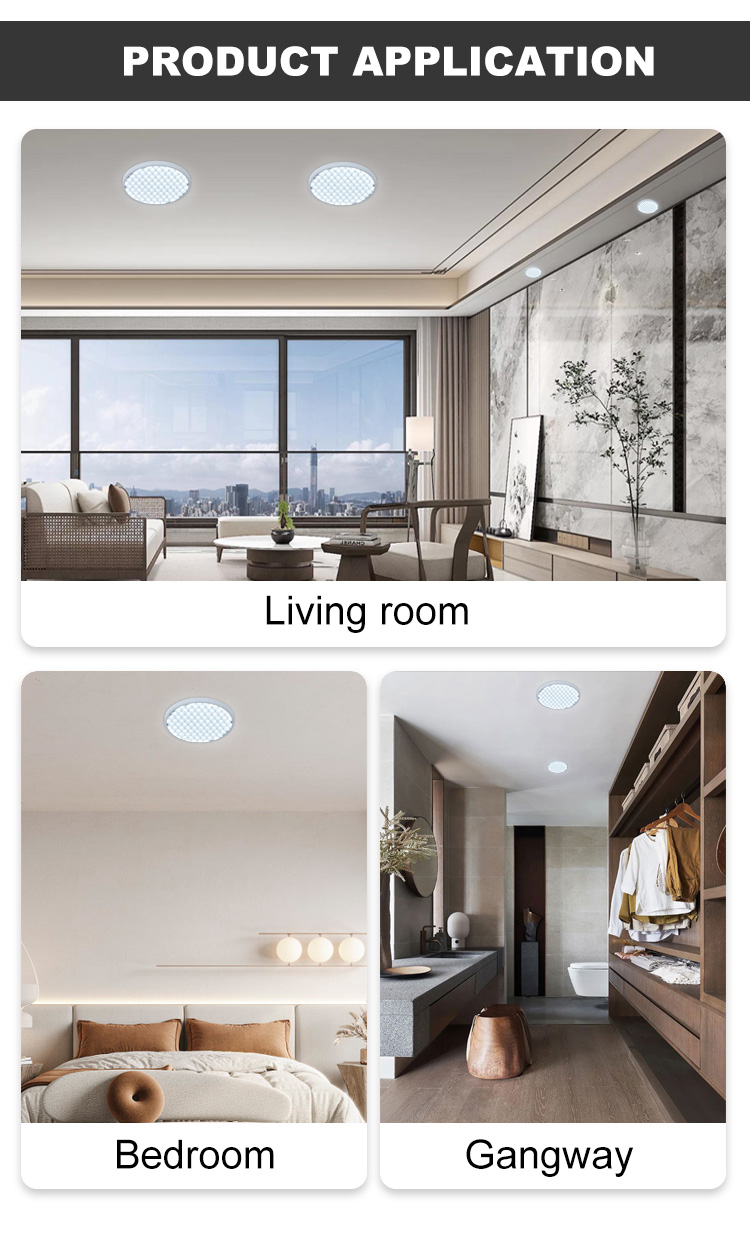

The ultra-thin panel is an important part of the surface light source. Its light-emitting area is not too large compared with the main light, but it is larger than the downlight, and the overall look is more atmospheric. OKES recommends that this honeycomb panel light can be used in home lighting such as living room, bedroom, and study room.



According to the size of the space, an appropriate amount of lamps can be installed to create a comfortable atmosphere. In terms of power, specifications such as 12W/18W/24W/36W can also be customized according to requirements to meet the lighting requirements.

Detials

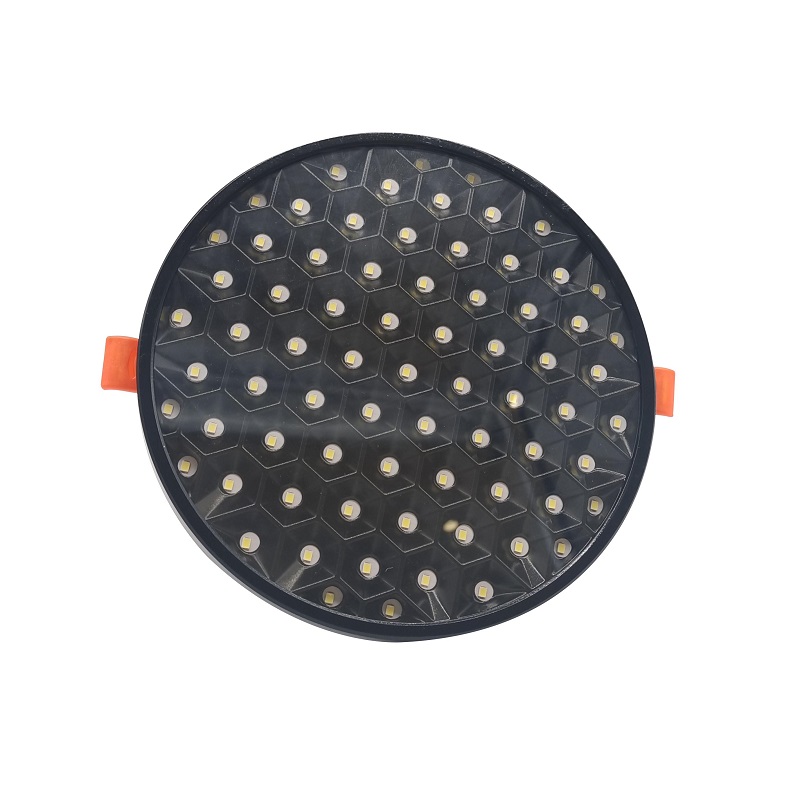

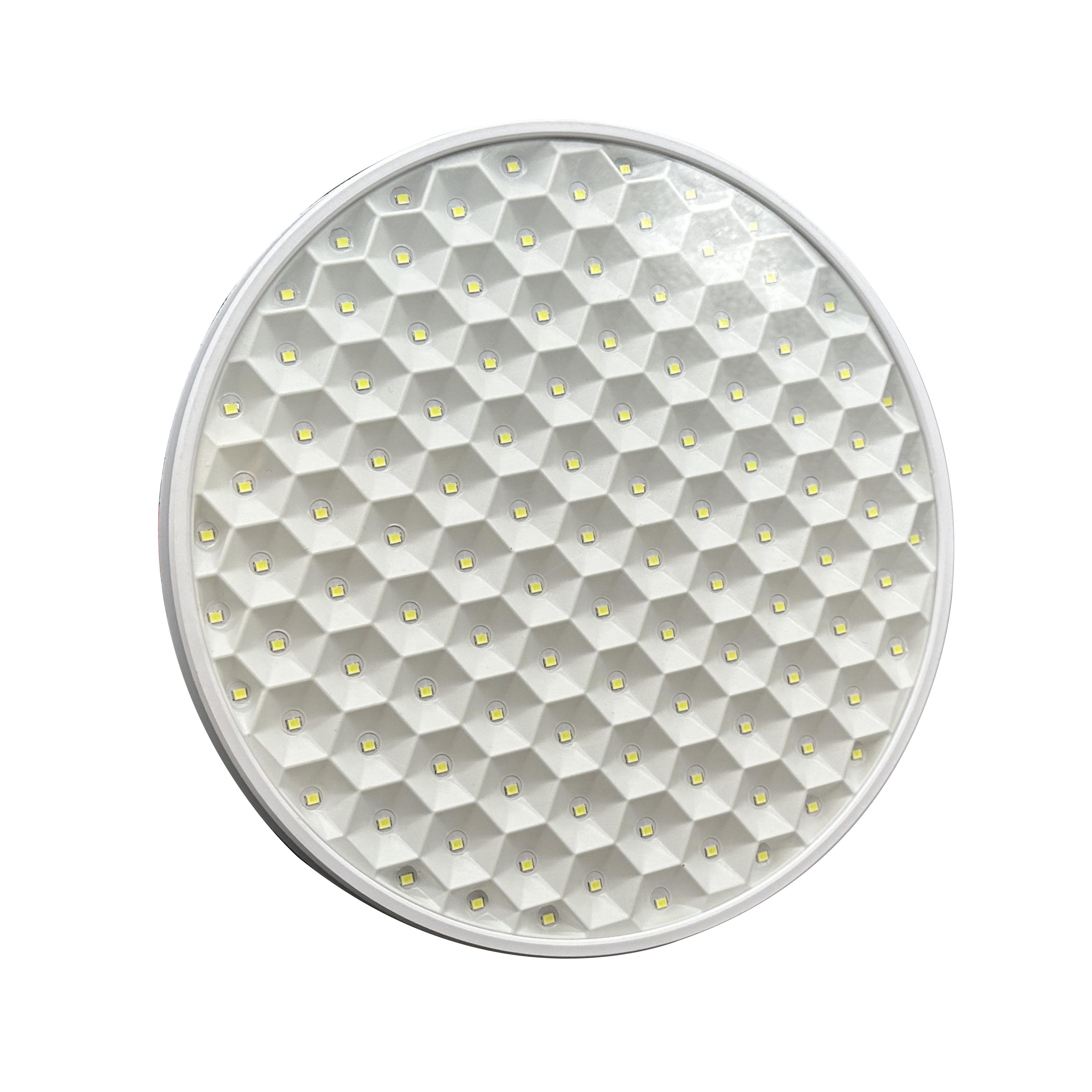

Anti-glare design, the light guide plate adopts honeycomb structure, a LED chip with an anti-glare hole, precise light control, to create a comfortable light experience for you.

黑色正面JPG
微信图片_20230919141257

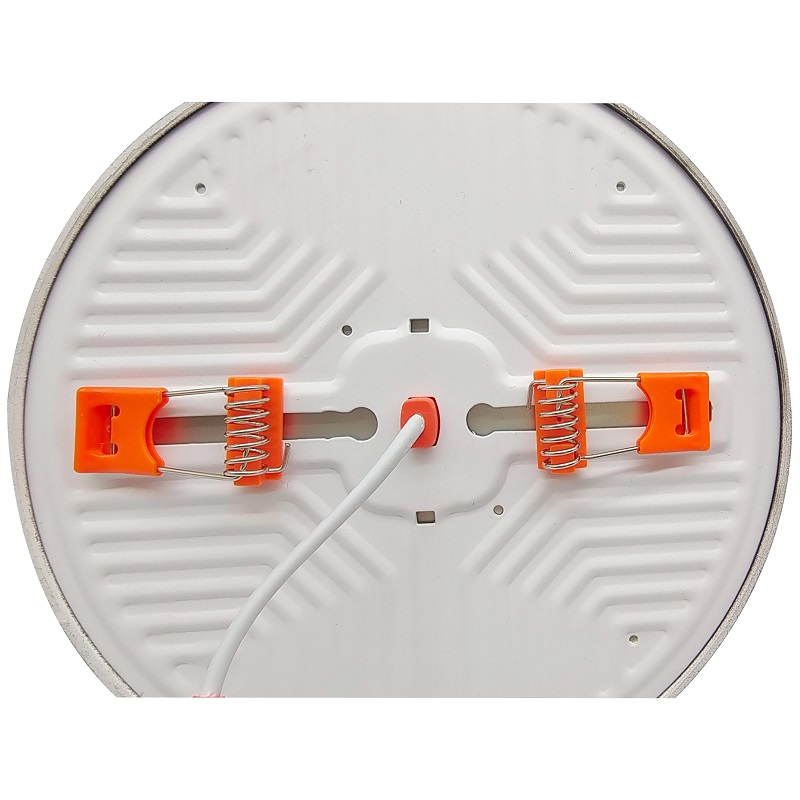

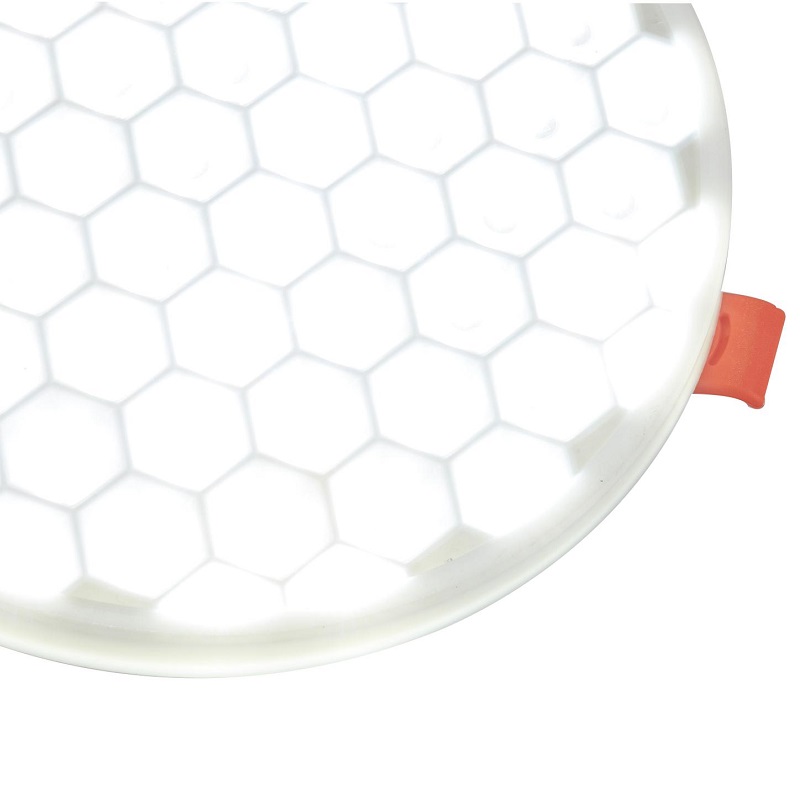

Abandoning the traditional fixed buckle and upgrading the movable buckle, it breaks through the limitation of space and realizes that small openings can be used to install large-size concealed lamps.

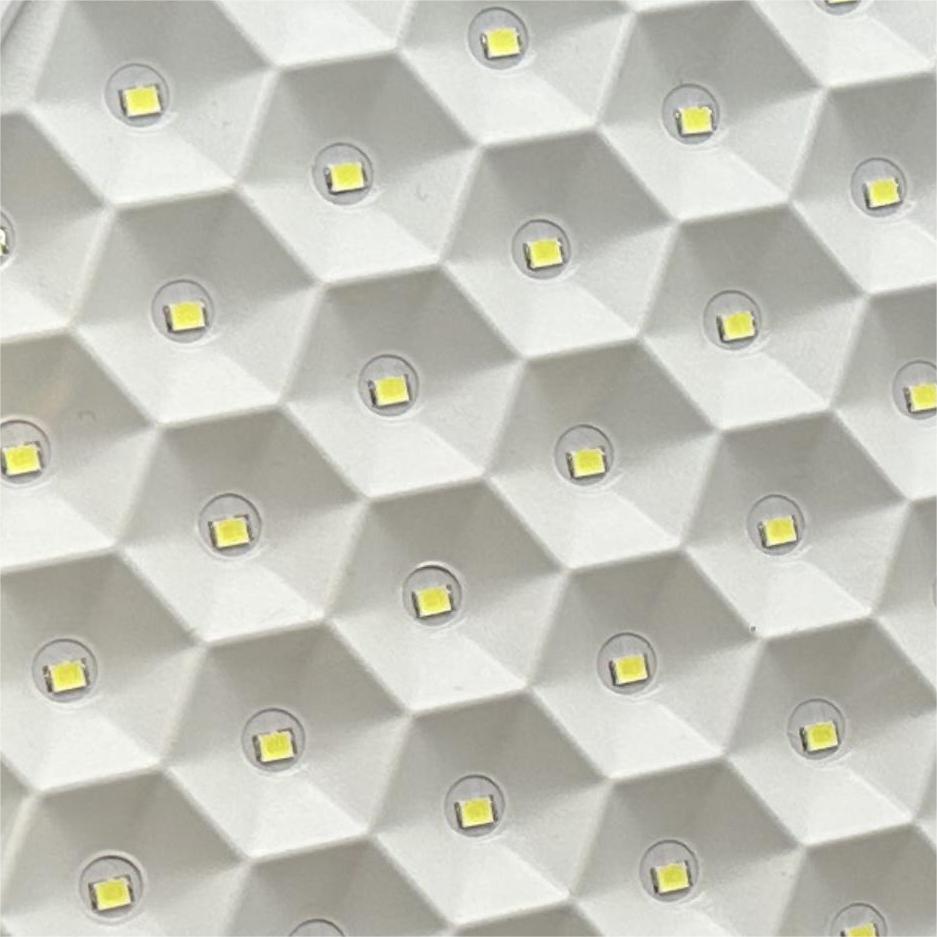

The light source adopts a new generation of patch light source, high color rendering index, and effectively restores the authenticity of the illuminated object; The light is soft, no video flash, and it is eye-friendly.

7 - 副本
1

Power

Material

Lamp size(mm)

Hole size(mm)

Voltage

CRI

Lumen

IP

10W

Aluminium+PP

Ф100*10

Ф50-70

175-265V

70

90LM/W

IP20

15W

Ф120*10

Ф55-95

22W

Ф170*10

Ф55-140

32W

Ф220*10

Ф55-190



FAQ

1.For product production, how to ensure quality?

The employees on the production line have undergone operation guidance training, familiar with the production step process, most of the employees have more than 10 years of experience, are skilled workers. We also have strict control over the corresponding raw material suppliers, and long-term cooperation has quality assurance.

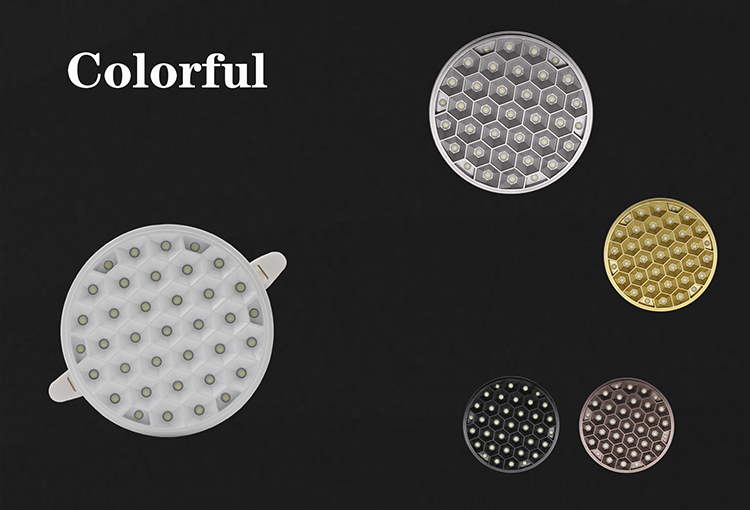

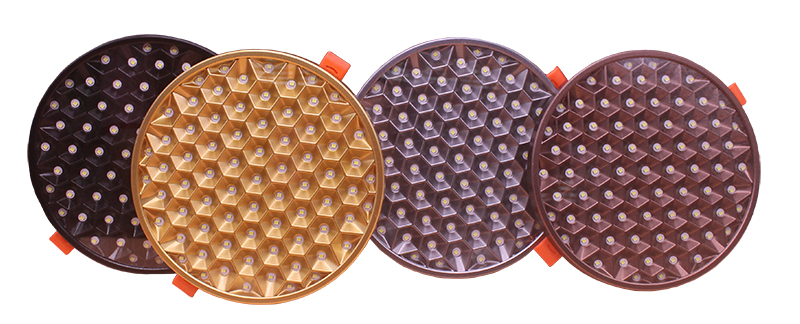

2.Is there any other color for this product that can be customized?

Of course, this product of OKES can be customized in black, brown, copper and silver.
