Short Description:

This product of OKES is a new type of ultra-thin series panel light, which cancels the frame design, extends the lampshade directly to the back panel, and adopts sealing technology to prevent the entry of mosquitoes. The lampshade emits light as a whole, and the side can also effectively transmit light. The highlight is uniform, perfectly covering the traces of installation, simple and elegant. The overall ultra-thin design perfectly solves the problem of low ceiling installation. The back adopts a free-moving buckle. According to the size of the hole, the position of the buckle can be adjusted reasonably to break through the limitation of space.



Product feature :

*  The mounting cut-out is adjustable and fits a variety of cut-outs.

*  Ultra-thin lamp body, whole lamp thickness 8mm.

*  Matte transparent lampshade, overall luminescence, bright and uniform light color.

*  High color rendering index, no flicker, suitable for long-term application.

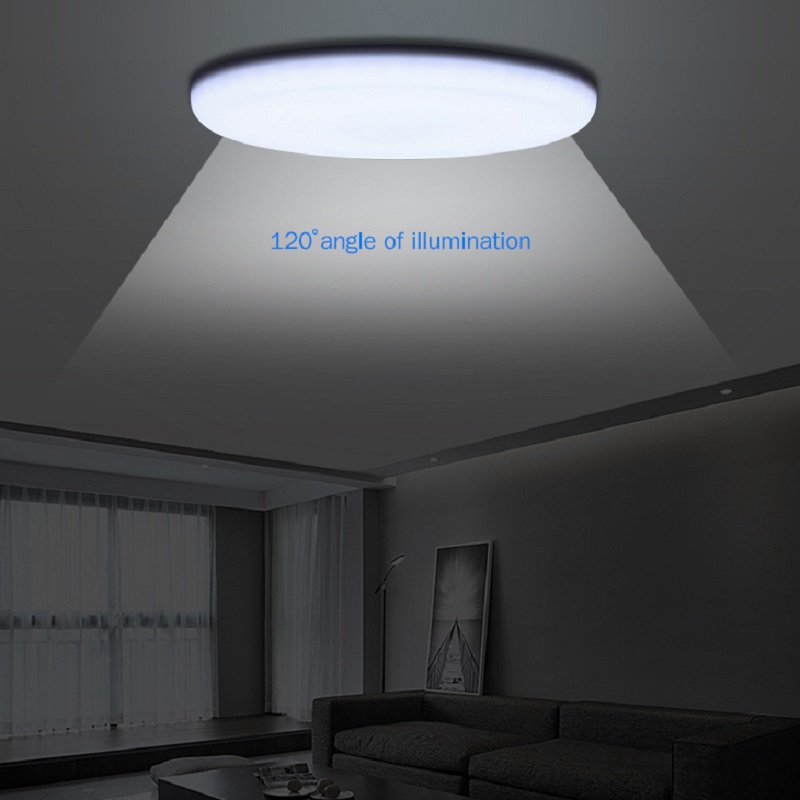

Product Detail

01a9a82fd7a1040ed27976492852cb9

Application:

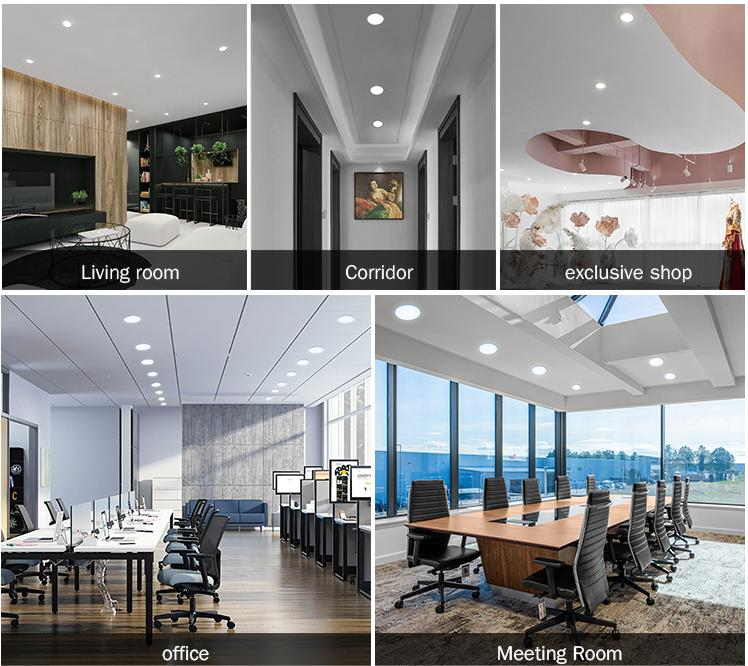

As an important part of the surface light source, the borderless ultra-thin panel is generally used in spaces with low ceilings or short rooms. In this way, after installing the lamps and lanterns, the space will not appear narrower, making people feel comfortable. This product can be used in shopping malls, offices, and homes. The buckle can be moved freely according to the size of the opening, making installation more convenient. Installed in the bedroom of the home, such as a room of 20 square meters, this product only needs to install two 24W.

Detials

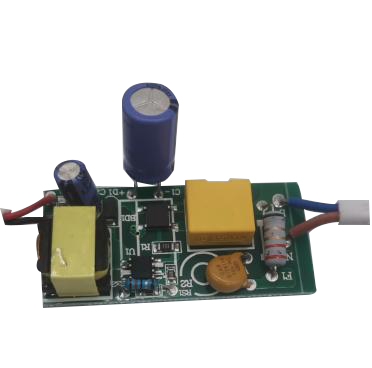

It adopts high-quality constant current driver to accurately control the current, effectively protect the LED chip and extend the service life of the lamp.

背面JPG - 副本

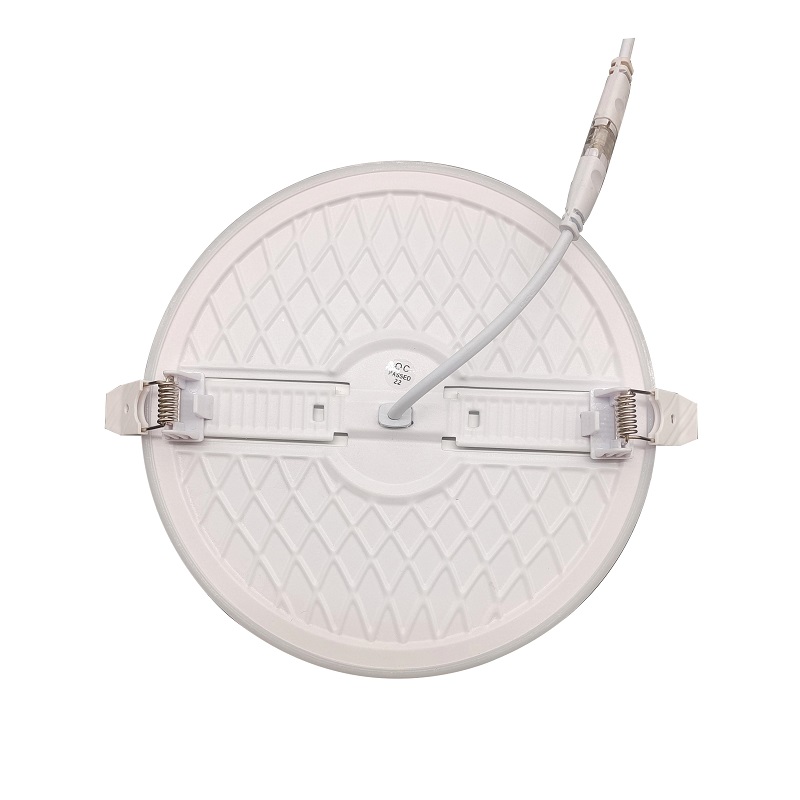

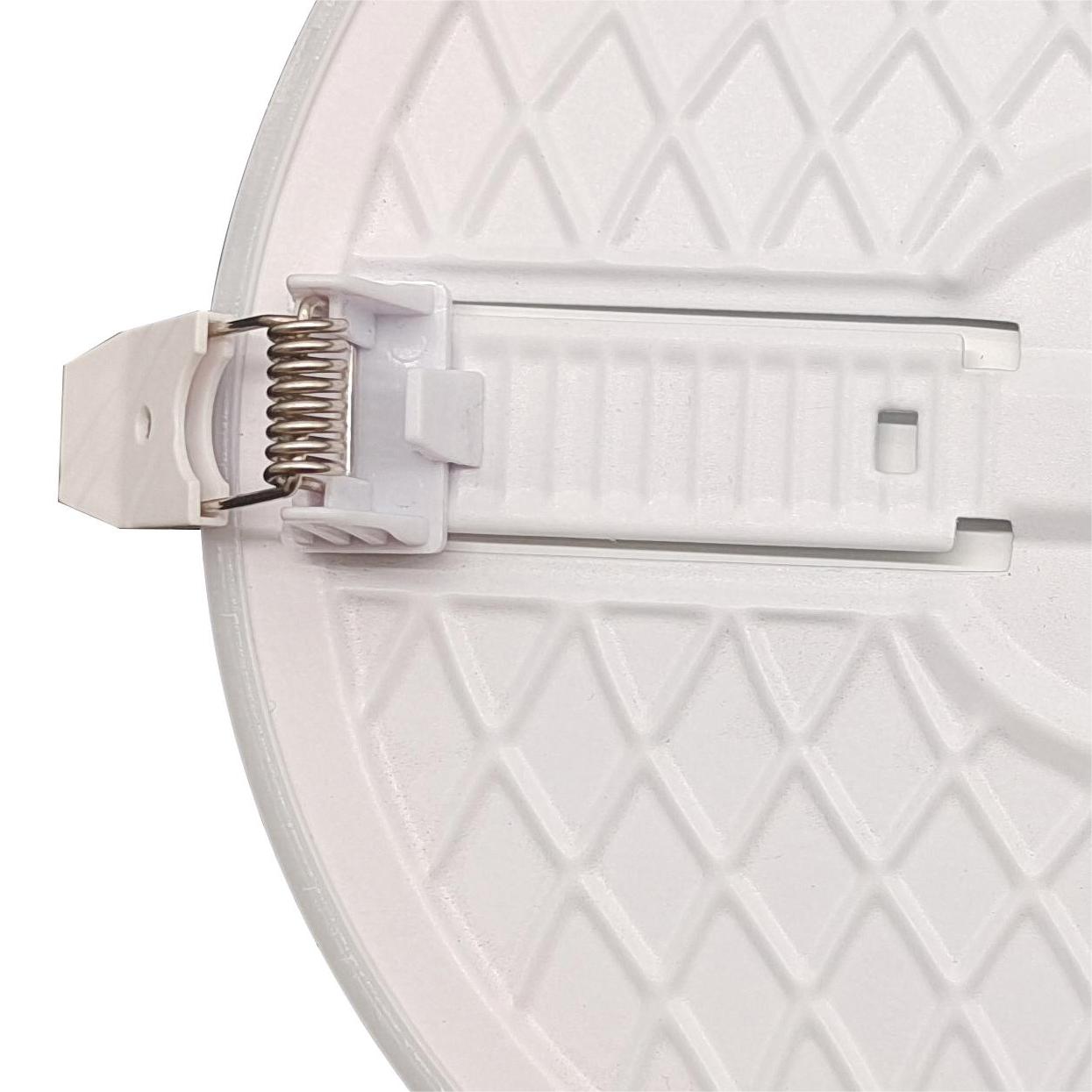

The movable buckle adopts the card slot design, which can accurately hold the card owner after each position to prevent the buckle from moving left and right, which is safer and stronger than the traditional straight sliding buckle.

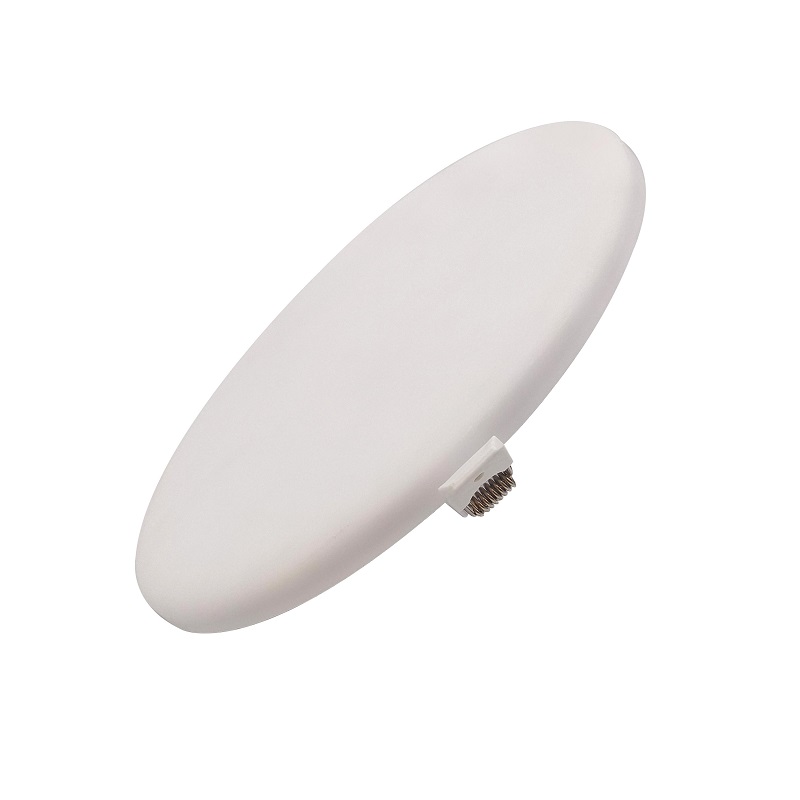

The lampshade is designed with high-quality acrylic frameless, and the side is also illuminated to increase the luminous area and illumination range. The acrylic is frosted to make the light softer and less harmful to the eyes.

侧面PNG

Power

Material

Lamp size(mm)

Hole size(mm)

Voltage

CRI

PF

IP

8W

Iron+PP

Ф 100*8

Ф55-75

85-265V

80

0.5

IP20

12W

Ф120*8

Ф55-110

18W

Ф170*8

Ф55-155

30W

Ф220*8

Ф55-210



FAQ

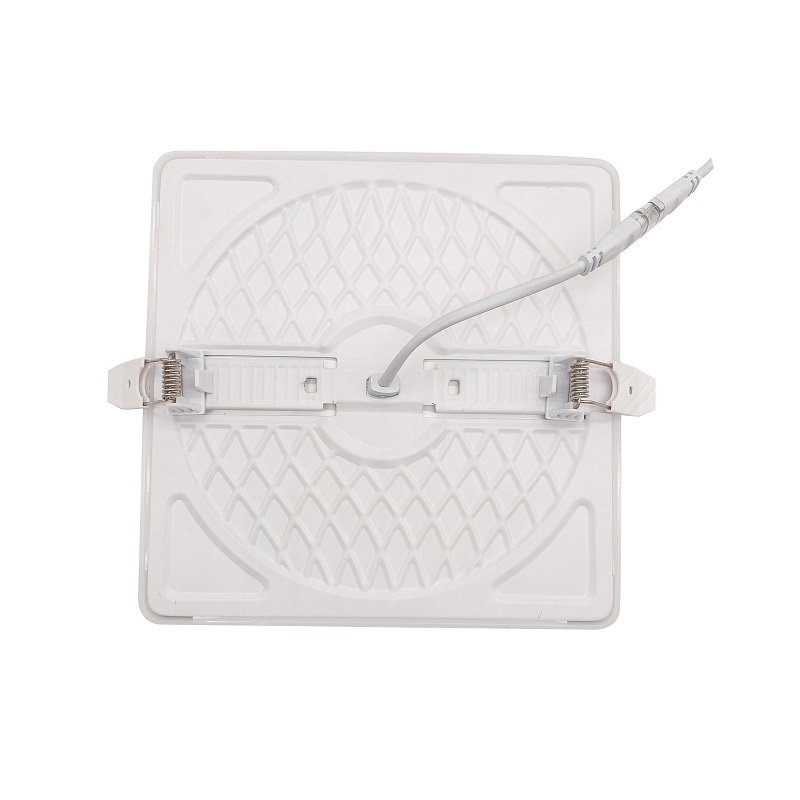

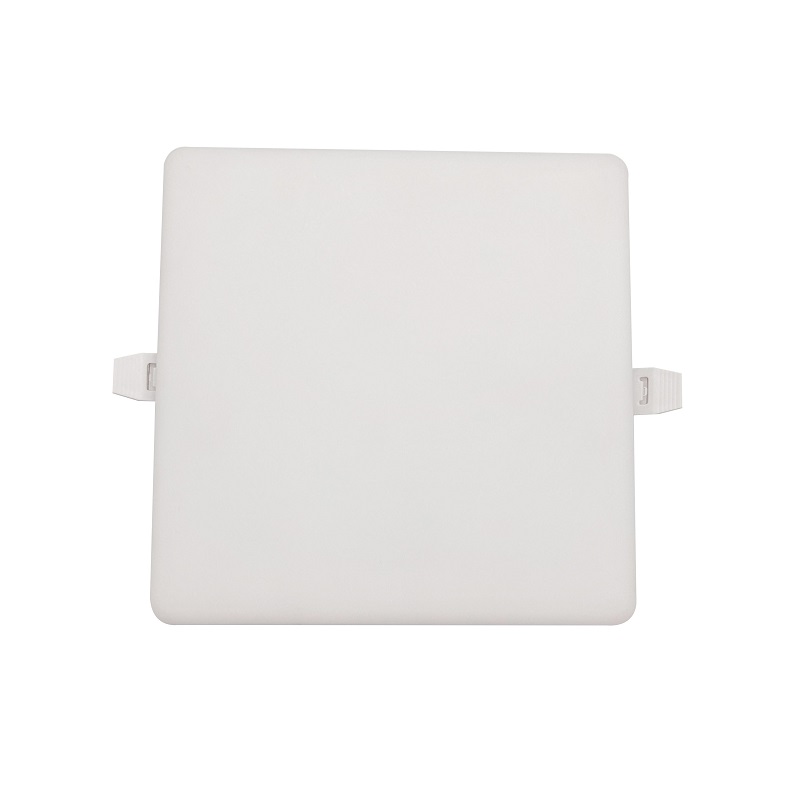

1.Can this product be made into a square shape?

In fact, for this frameless slide panel light, we also have square



2.Does the product have an installation manual?

Our products will be accompanied by product instruction manuals.
