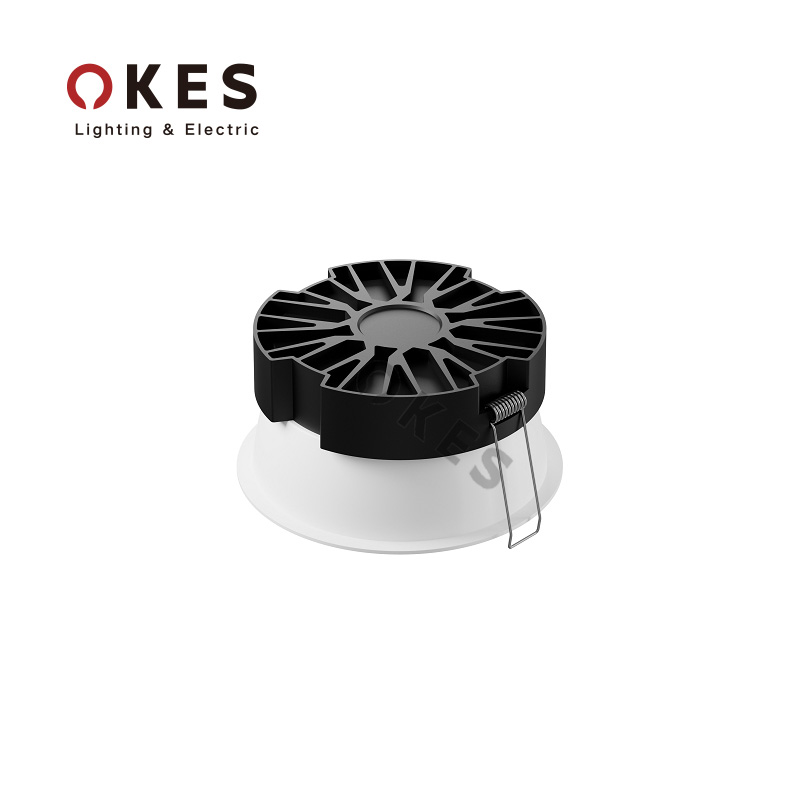

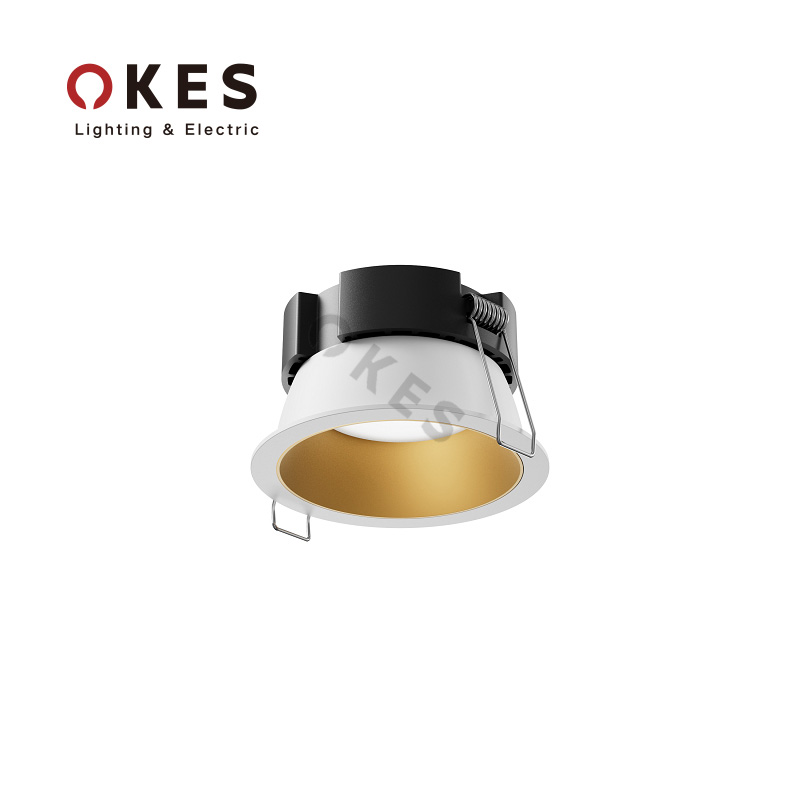

LED Downlight High brightness10W 15W 24W aluminum downlight

Short Description:

Downlights are used to provide basic, even and soft lighting. With a beam angle of 90° and a wide coverage area, are often used in combination to illuminate entire spaces. It is often used for lighting in homes, shops, hotels and shopping malls.

Product feature

· 100-120LM/W:low power and high luminous efficiency.
· Die-cast aluminum： good cooling effect.
· Customizable solutions： DOB, non-isolated, isolated and surge protection.

size: Round; Square

Send email to us

Product Detail

· A variety of different solutions can be customized including DOB, non-isolation, isolation against surge, etc.

· Private mold design heat dissipation, selected die-cast aluminum, effective cooling and heat reduction.

· A 10W downlight can achieve 100LM/W, truly realizing the energy-saving concept of low power and high luminous efficiency.

· The three color temperatures can be controlled by switch or dip control

Product Parameters

Model	Power	Size	Cut out	lighting effect	CRI	Color temperature	Warranty	Drive
OS05-ZG10	10W	φ85x48	φ75	100-120LM/W	90	WW/CW/NW/3CCT	3-5 years	Isolation drive/ Non-isolated drive/ DOB
OS05-ZG15	15W	φ104x65	φ95	100-120LM/W	90	WW/CW/NW/3CCT	3-5 years
OS05-ZG24	24W	φ138x65	φ125	100-120LM/W	90	WW/CW/NW/3CCT	3-5 years
