Short Description:

1.Product feature:
• Thicker aluminum, good heat-dissipation.
• High-brightness chip with good CRI and high lumen and reduce light decay.
• PC diffuser to have soft light without dazzling.
• Good-brand LED driver, no flicking and eye protection.

2.Product description:
The Housing of the OKES recssed mounted panel light is made of aluminum . Its heat dissipation is better, not easy to deformation, good light transmission.High-brightness LED chip with good CRI and high lumen and reduce light decay.Slim LED panel light the thickness of the whole lamp is only about 1cm,from simple to thick, the thinner the brighter.




Product Detail

详情_01
详情_02

ANTI-GLARE DESIGN

side light hign luminous flex

warm light 3000k

neutral light 4000k

withe light 6500k

encircling the led chip surrounding

frosted acrylic transparent light plate

reflector paper

cast iron lamp body

excellent acrylic light guide plate

metal base

详情_07
详情_03
详情_04



Application Example

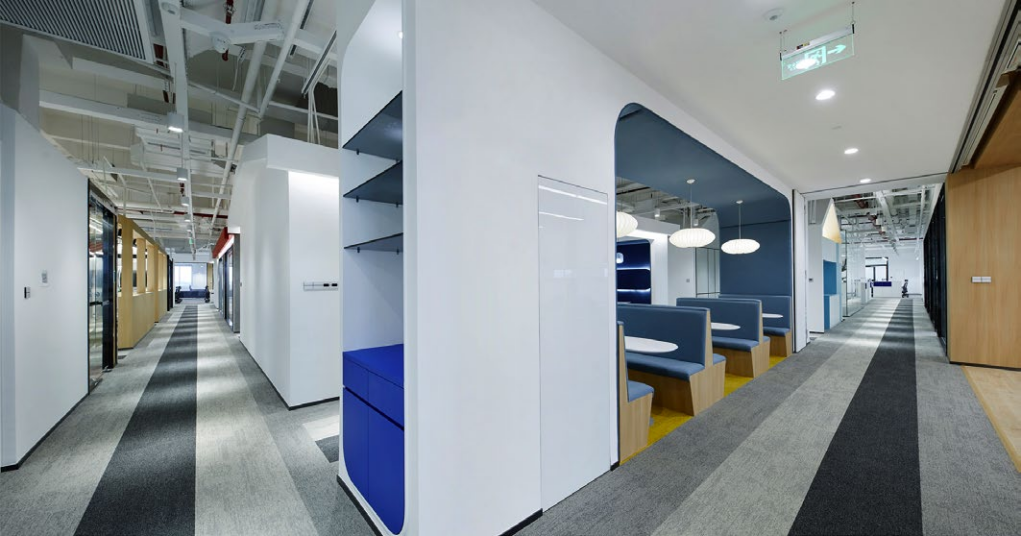

OKES LED silm panel light can be used as the ceiling lighting of the corridor at the company. The slim panel light is a lighting fixture that is recessed in the ceiling and emits light down. Its biggest feature is that it can maintain the overall unity and perfection of architectural decoration, and will not destroy the perfect unity of ceiling art because of the setting of lamps.






PARAMETER:



Round

Power

Material

Lamp size

Hold size

Lumen

CRI

Warranty

3W

Aluminum

φ83

φ70

100-120LM

80

2 Years

6W

Aluminum

φ118

φ105

300-400LM

80

2 Years

9W

Aluminum

φ146

φ130

500-600LM

80

2 Years

12W

Aluminum

φ168

φ155

650-800LM

80

2 Years

15W

Aluminum

φ189

φ175

900-1100LM

80

2 Years

18W

Aluminum

φ222

φ205

1200-1400LM

80

2 Years

24W

Aluminum

φ294

φ280

1400-1600LM

80

2 Years



Square

Power

Material

Lamp size

Hold size

Lumen

CRI

Warranty

3W

Aluminum

83*83

70*70

100-120LM

80

2 Years

6W

Aluminum

117*117

102*102

300-400LM

80

2 Years

9W

Aluminum

145*145

132*132

500-600LM

80

2 Years

12W

Aluminum

167*167

152*152

650-800LM

80

2 Years

15W

Aluminum

189*189

175*175

900-1100LM

80

2 Years

18W

Aluminum

218*218

202*202

1200-1400LM

80

2 Years

24W

Aluminum

292*292

275*275

1400-1600LM

80

2 Years

DETAILS:

①Different color clips can be customized according to your preference.

Product specifications, production date and logo can be laser printed on the back of the lamp body.



FAQ:

What are your prices

Our price will change according to the production requirements and packaging factors.We will send you an updated price list after your company contact us for further information.

What is the lead time?

It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

How to solve the quality problems after sales?

Take photos of the problems and send to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.
